Cargo is the source of revenue for freight operations. On passenger aircraft, cargo is carried in the lower hold. On freighters, cargo is also carried on the main deck. In large freighter aircraft, cargo is loaded and carried in various pallets and containers, known as Unit Load Devices (ULD). The following describes the main ULDs used by passenger and freighter aircraft for air cargo operations.Not all variations of ULDs are held by all airlines ,it is subject to demand.


Common designation: LD-1

IATA ULD code: AKC contoured container
Also known as: AVC, AVD, AVK, AVJ, and forkable AVY
Rate class: Type 8
Description: Half-width lower hold container with one angled side. Door is either canvas or solid. Suitable for: 747, 767, 777, 787, MD-11 lower hold
Door opening: 58 x 61-in (147 x 155-cm)
Maximum gross weight: 1,588 kg (3,501 lb)
Tare weight: 70 to 170-kg (155 to 375-lb)
Total volume
: 5.0 m3 (175 ft3)


Common designation LD-2 :

IATA ULD code: DPE contoured container
Also known as: APA, DPA, and forkable DPN
Rate class: Type 8D
Description: Half-width lower hold container with one angled side. Door is either canvas or solid. Suitable for: 747, 767, 777, 787 lower hold
Door opening: 44 x 60-in (112 x 152-cm)
Maximum gross weight: 1,225 kg (2,700 lb)
Tare weight: 92 kg (203 lb)
AS1825 volume: 3.5 m3 (124 ft3)

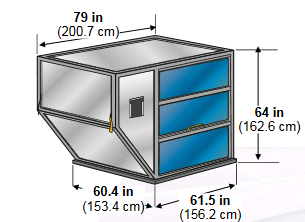

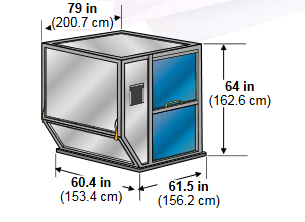

Common designation: LD-3

IATA ULD code: AKE contoured container
Also known as: AKE, AVA, AVB, AVC, AVK, DVA, DVE, DVP,XKS, XKG, and forkable AKN, AVN, DKN, DVN, and XKN
Rate class: Type 8
Description: Half-width lower hold container with one angled side. Door is either canvas or solid.
Suitable for: 747, 767, 777, 787, DC-10, MD-11 lower hold
Door opening: 58 x 61-in (147 x 155-cm)
Maximum gross weight: 1,588 cm (3,500 lb)
Tare weight: 82 kg (181 lb)
AS1825 volume: 4.5 m3 (159 ft3)


Common designation: LD-3 Reefer

IATA ULD code: RKN contoured cool container
Also known as: RVN
Rate class: Type 8
Description: Half-width lower hold insulated container with one angled end. Door is solid. Most examples are forkable.
Suitable for: 747, 767, 777, 787, DC-10, MD-11 lower hold
Door opening: 54 x 55-in (137 x 140-cm)
Maximum gross weight: 1,588 cm (3,500 lb)
Tare weight: 210 kg (463 lb)
AS1825 volume: 4.5 m3 (159 ft3) plus internal volume (as is)


Common designation: Half pallet

IATA ULD code: PNA 767
half pallet with net Also known as: PQP, FQF, and PPC
Rate class: Type 8
Description: Half pallet squared off for 767 lower hold
Suitable for: 767, 787 lower hold
Maximum gross weight: 2,449 kg (5,399 lb)
Tare weight: 83 kg (183 lb)
AS1825 volume: 5.5 m3 (194 ft3)


Common designation: Half pallet

IATA ULD code: PLA half pallet with net
Also known as: PLB, FLA, P9A, P9B, P9P, P9R, and P9S
Rate class: Type 6
Description: Half pallet is contoured for lower hold and main deck.
Suitable for: 747, 777, 787 lower hold; 707F, 727F, 737F main deck with contoured load
Maximum gross weight: 3,175 kg (6,999 lb)
Tare weight: 91 kg (200 lb)
AS1825 volume: 7.1 m3 (250 ft3)

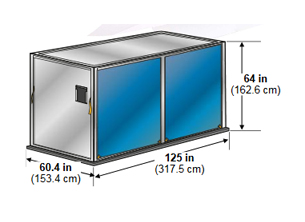

Common designation: LD-4

IATA ULD code: ALP rectangular container
Also known as: ALD, AWD, AWZ, DLP, and forkable ALB, ALC,AWB, and AWC
Rate class: Type 8
Description: Full-width lower hold container. Door is canvas with built-in door straps.
Suitable for: 767, 777, 787 lower hold
Door opening: 92 x 61-in (234 x 155-cm)
Maximum gross weight: 2,449 kg (5,399 lb)
Tare weight: 120 kg (264 lb)
AS1825 volume: 5.7 m3 (200 ft3)

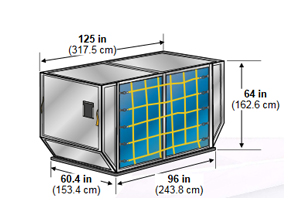

Common designation: LD-6

IATA ULD code: ALF contoured container
Also known as: AWA, AWF, and forkable AWC
Rate class: Type 6W
Description: Full-width lower hold container with angled ends.Door is canvas with built-in door straps.
Suitable for: 747, 777, 787, DC-10, MD-11 lower hold
Door opening: 120 x 60-in (305 x 152-cm)
Maximum gross weight: 3,175 kg (7,000 lb)
Tare weight: 230 kg (507 lb)
AS1825 volume: 9.1 m3 (322 ft3)

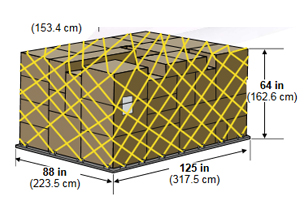

Common designation: LD-7

IATA ULD code: P1P flat pallet with net
Also known as: PAA, PAG, PAJ, PAP, PAX, P1A, P1C, P1D,and P1G
Rate class: Type 5
Description: Universal general-purpose flat pallet for lower holds and main decks.
Suitable for: Wide body: All aircraft lower holds and main decks
Standard-body: 707F, 727F, 737F, 757F, DC8F, DC9F main decks
Maximum gross weight: 4,626 kg (10,198 lb)
Tare weight: 105 kg (231 lb)
AS1825 volume: 10.5 m3 (370 ft3)

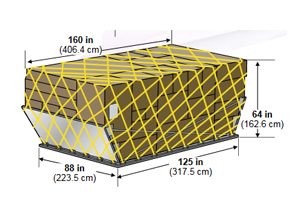

Common designation: LD-7

IATA ULD code: PAD P1P pallet with folding wings and net
Also known as: PAX and P1X
Rate class: Type 5
Description: P1P base with folding wings for overhang.
Suitable for: 747, 777, 787, DC-10, MD-11 lower holds
Maximum gross weight: 5,000 kg (11,023 lb)
Tare weight: 152 kg (335 lb)
AS1825 volume: 14.0 m3 (495 ft3)


Common designation: LD-7

IATA ULD code: XAW P1P pallet with fixed-angle wings and net
Rate class: Type 5
Description: P1P base with fixed wings for overhang.
Suitable for: 747, 777, 787, DC-10, MD-11 lower holds
Maximum gross weight: 5,000 kg (11,023 lb)
Tare weight: 170 kg (375 lb)
AS1825 volume: 14.0 m3 (495 ft3)


Common designation: LD-8

IATA ULD code: DQF
Also known as: ALE, ALN, DLE, DLF, DQP, and MQP
Rate class: Type 6A
Description: Full-width lower hold container angled at both ends. Door is canvas with built-in door straps.
Suitable for: 767, 787 lower hold
Door opening: 92 x 62-in (234 x 157-cm)
Maximum gross weight: 2,450 kg (5,401 lb)
Tare weight: 127 kg (280 lb)
AS1825 volume: 7.1 m3 (252 ft3)


Common designation: LD-9

IATA ULD code: AAP enclosed pallet on P1P base
Rate class: Type 5
Description: General-purpose enclosed container fitted to P1P base. Door is canvas with built-in net door straps,or solid.
Suitable for: 747, 767, 777, 787, DC-10, MD-11 lower hold
Door opening: 118 x 58 in (300 x 147-cm)
Maximum gross weight: Lower hold, 4,624 kg (10,194 lb); main deck, 6,000 kg (13,227 lb)
Tare weight: Canvas door, 215 kg (473 lb);solid door, 270 kg (595 lb)
AS1825 volume: 10.8 m3 (381 ft3)

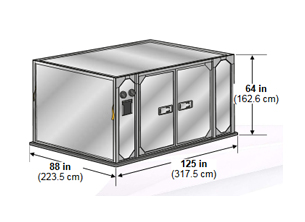

Common designation: LD-9 Reefer

IATA ULD code: RAP cool container on P1P base
Rate class: Type 5
Description: Insulated container with solid door.
Suitable for: 747, 767, 777, 787, DC-10, MD-11 lower hold
Door opening: 85 x 58-in (216 x 147-cm)
Maximum gross weight: Lower hold, 4,626 kg (10,198 lb); main deck, 6,000 kg (13,227 lb)
Tare weight: 400 kg (882 lb)
Internal volume: 9.6 m3 (339 ft3)


Common designation: LD-11

IATA ULD code: ALP rectangular container
Also known as: ALD, AW2, AWB, AWD, AWZ, DLP, DWB,and MWB. Refrigerated version: RWB, RWD, and RWZ.
Rate class: Type 6
Description: Full-width lower hold container. Door is canvas.Center post swings clear for loading. Refrigerated versionhas solid door.
Suitable for: 747, 777, 787, DC-10, MD-11 lower hold
Door opening: 120 x 61-in (305 x 155-cm)
Maximum gross weight: 3,176 kg (7,002 lb)
Tare weight: 185 kg (408 lb)
AS1825 volume: 7.4 m3 (262 ft3)

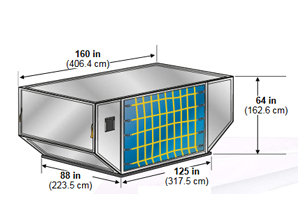

Common designation: LD-26

IATA ULD code: AAF contoured container on P1P base
Rate class: Type 5
Description: Full-width lower hold container angled at both ends. Door is canvas with built-in net door straps.
Suitable for: 747, 777, 787, DC-10, MD-11 lower hold
Door opening: 120 x 60-in (305 x 152-cm)
Maximum gross weight: 6,033 kg (13,300 lb)
Tare weight: 250 kg (551 lb)
AS1825 volume: 13.3 m3 (470 ft3)

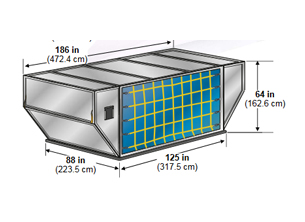

Common designation: LD-29

IATA ULD code: AAU contoured container on P1P base
Rate class: Type 5
Description: Full-width lower hold container angled at both ends. Door is canvas with built-in net door straps.
Suitable for: 747 lower hold
Door opening: 118 x 60-in (300 x 152-cm)
Maximum gross weight: 6,033 kg (13,300 lb)
Tare weight: 265 kg (584 lb)
AS1825 volume: 14.4 m3 (510 ft3)


Common designation: LD-29

IATA ULD code: RAU contoured cool container on P1P base.
Rate class: Type 5
Description: Full-width lower hold container angled at both ends. Refrigerated version of AAU has solid door.
Suitable for: 747 lower hold
Door opening: 118 x 60-in (300 x 152-cm)
Maximum gross weight: 6,033 kg (13,300 lb)
Tare weight: 450 kg (992 lb)
Internal volume: 11.1 m3 (392 ft3)

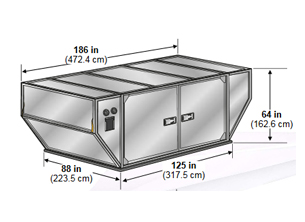

Common designation: LD-39

IATA ULD code: AMU contoured container on P6P base
Rate class: Type 2BG
Description: Full-width lower hold container angled at both ends. Door is canvas with built-in net door straps.
Suitable for: 747 lower hold
Door opening: 120 x 60-in (305 x 152-cm)
Maximum gross weight: 5,035 kg (11,100 lb)
Tare weight: 290 kg (639 lb)
AS1825 volume: 15.9 m3 (560 ft3)

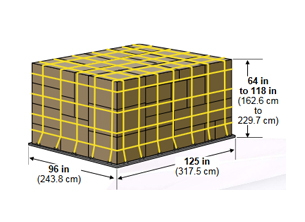

Common designation: P6P pallet

IATA ULD code: P6P 10-ft flat pallet with net
Rate class: Type 2BG
Description: Universal general-purpose flat pallet for lower holds and main decks.
Suitable for: 747, 767, 777, 787, DC-10, MD-11
Tare weight: 120 kg (265 lb)
AS1825 volume:
H 162.6 cm (64 in), 11.5 m3 (407 ft3)
H 243.8 cm (96 in), 17.0 m3 (600 ft3)
H 299.7 cm (118 in), 21.2 m3 (750 ft3)
Boeing volume:
H 162.2 cm (64 in), 11.7 m3 (415 ft3)
H 243.8 cm (96 in), 17.0 m3 (600 ft3)
H 299.7 cm (118 in), 21.2 m3 (750 ft3)


Common designation: Demi

IATA ULD code: AYY contoured container on half pallet base.
Rate class: Type 7
Description: Half-width main deck container with top contour
Suitable for:
727F, 737F, 757F main deck
747F, 767F, 777F, DC-10F, MD-11F main deck
Maximum gross weight: 3,016 kg (6,649 lb)
Tare weight: 80 kg (176 lb)
AS1825 volume: 5.8 m3 (206 ft3)

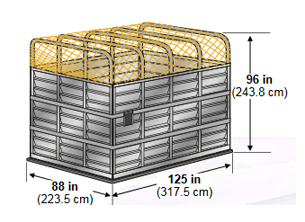

Common designation: Type A pen

IATA ULD code: KMA sheep and goat pens on P1P base with net
Rate class: Type 3
Description: Triple-deck sheep and goat pens
Suitable for: Main deck 747F, 767F, 777F, DC-10F, MD-11F
Tare weight: Triple deck, 610 kg (1,344 lb);
AS1825 volume: 15.9 m3 (560 ft3)

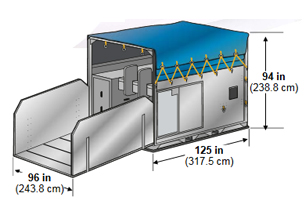

Common designation: HMA stall

IATA ULD code: HMA horse box on P6P pallet base
Rate class: Type 2
Description: P6P base with IATA-specified horse box stalls attached. Available with canvas top or solid roof. Some further modified versions available with position for escort.
Suitable for: Main deck 747F, 767F, 777F, DC-10F, MD-11F
Maximum gross weight: 3,500 kg (7,716 lb)
Tare weight: 1,310 kg (2,888 lb)
AS1825 volume: 18.4 m3 (653 ft3)


Common designation: M-1

IATA ULD code: AMA rectangular container on P6P base
Rate class: Type 2
Also known as: AMF, AMG, AMK, AMP, AQA, AQD, and AQ6
Description: Main-deck container. Door is canvas with built-in net door straps.
Suitable for: 747F, 747 Combi 777F center loading only
Maximum gross weight: 6,804 cm (15,000 lb)
Tare weight: 350 kg (772 lb),
AS1825 volume: 17.6 m3 (623 ft3)


Common designation: M1H

IATA ULD code: AMD contoured
Rate class: Type 2H
Description: Main-deck upper contoured container. Door is canvas with built-in net door straps.
Suitable for: 747F, 747 Combi 777F center loading only
Maximum gross weight: 6,800 kg (14,491 lb)
Tare weight: 370 kg (816 lb)
AS1825 volume: 21.2 m3 (750 ft3)

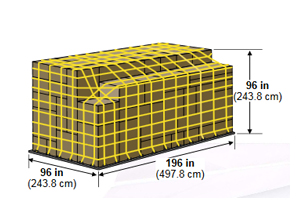

Common designation: Main deck pallet (MDP)

IATA ULD code: PRA 16-ft pallet with net
Rate class: Type 1P
Also known as: PMA, P4A, P4M, and PZA
Description: Main-deck pallet with net
Suitable for: 747F, 747 Combi, 777F
Maximum gross weight: 11,300 kg (24,911 lb)
Tare weight: 410 kg (904 lb)
AS1825 volume: 27.6 m3 (974 ft3)

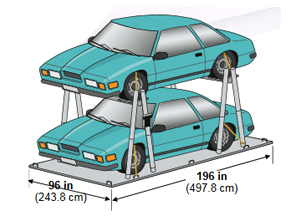

Common designation: M-6

IATA ULD code: PRA 16-ft flat pallet with twin car racks as VRA
Rate class: Type 1P
Also known as: PMA, P4A, P4M, and PZA
Description: Main-deck pallet with special moulding for car rack attachments. The support racks are available in pairs as IATA ULD code VRA.
Suitable for: 747F, 747 Combi, 777F (center loading only)
Maximum gross weight: 8,900 kg (19,621 lb), vehicle forupper rack must not exceed 1,800 kg (3,968 lb)
Tare weight: 400 kg (882 lb)Car supports weight: 130 kg (286 lb) per pairNote: The same system is available for longer vehicles on 20-ft pallet. The only increase in weight is the pallet tare weight: 500 kg (1,102 lb).

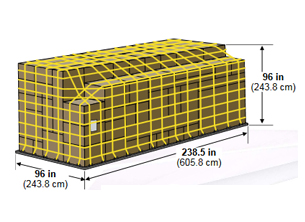

Common designation: M-6

IATA ULD code: PGA 20-ft flat pallet with net
Rate class: Type 1
Also known as: PGA, PGE, PGF, PSA, PSG, P7E,P7F, and P7G
Description: Main-deck pallet squared off to 244 cm (96 in) high.
Suitable for: 747F, 747 Combi, 777F
Maximum gross weight: 11,340 kg (25,000 lb)
Tare weight: 500 kg (1,102 lb)
AS1825 volume: 33.7 m3 (1,190 ft3)

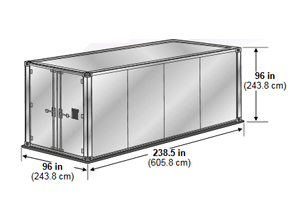

Common designation: M-2

IATA ULD code: AGA 20-ft box container
Rate class: Type 1
Also known as: ASE
Description: Main-deck container. Door is solid.
Suitable for: 747F, 747 Combi 777F center loading only
Maximum gross weight: 11,340 kg (25,000 lb)
Tare weight: 1,000 kg (2,204 lb)
AS1825 volume: 33.7 m3 (1,190 ft3)


Common designation: M-6

IATA ULD code: PGA 10-ft high, 20-ft flat pallet with net
Rate class: Type 1
Also known as: PGA, PGE, PGF, PSA, PSG, P7A, P7E, P7F, and P7G
Description: Main-deck pallet squared off to 299.7 cm (118 in) high.
Suitable for: 747 Combi, 777F 747F through side cargo door only
Maximum gross weight: 11,340 kg (25,000 lb)
Tare weight: 500 kg (1,102 lb)
AS1825 volume: 39.6 m3 (1,400 ft3)
